Software Solutions for Wireless Connectivity

The Cordio software series consists of link/MAC, stack, and profiles, for Bluetooth low energy 5, 4.2, and 802.15.4 standards. Designed to be hardware independent and portable, they can be combined by silicon manufacturers to create a complete "link layer-to-application."

Cordio Radio Software Solutions
Cordio-C50 Software Controller

Cordio-C50 Software Controller contains the link software for Bluetooth 5 radios as well as the MAC software for 802.15.4 radios.

The Cordio link software is a portable, configurable hardware-independent design tailored for system-on-chip and HCI controller configuration, and Bluetooth 5 qualified. The Cordio-C50 link software system consists of the controller HCI, Bluetooth 5 compliant link layer protocol core, scheduler, baseband porting layer and a portable software foundation.

The Cordio-C50 MAC layer firmware has the necessary features to implement the Thread and Zigbee Pro upper layer stacks.

The design is optimized for low-power with support for Bluetooth low energy and 802.15.4 standards, and ideal for designers who want to implement the latest features with a qualified/certified solution for reduced risk and improved time to market.

Cordio-B50 Link Layer

The Cordio-B50 link layer software is a Bluetooth 5 qualified portable, configurable hardware-independent design tailored for system-on-chip and HCI controller configuration. The Cordio-B50 link software system consists of the controller HCI, Bluetooth 5 compliant link layer protocol core, scheduler, baseband porting layer and a portable software foundation.

Cordio-E154 MAC Layer

The Cordio-E154 MAC layer firmware has features required to implement the Thread and Zigbee Pro upper layer stacks. The design is optimized for low-power with support for 802.15.4 standards, ideal for designers who want to implement the latest features with a qualified/certified solution for reduced risk and reduced time to market.

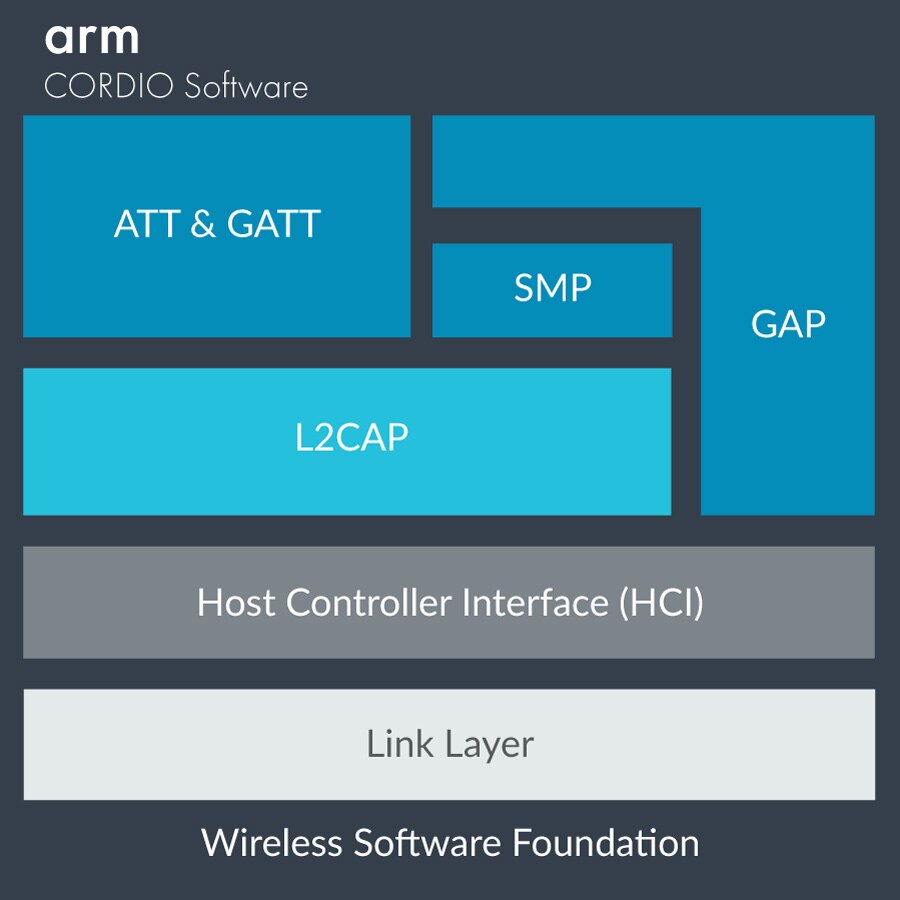

Cordio B50 Stack


Cordio-B50 Stack

The Cordio-B50 software stack is a set of software routines (provided as C source code) optimized for code-density and built to provide the interface between the standard Bluetooth link layer and the operating system.

Cordio-B50 supports the changes necessary for the Bluetooth 5 standard including the 2 Mbps mode, long range, and advertising extensions. Designed specifically for Bluetooth low-energy single-mode products, the Cordio-B50 software stack can be used either with third-party Bluetooth radios or with Arm’s Cordio-B50 radios.

Cordio stack is offered as an open-source option through Arm Mbed.

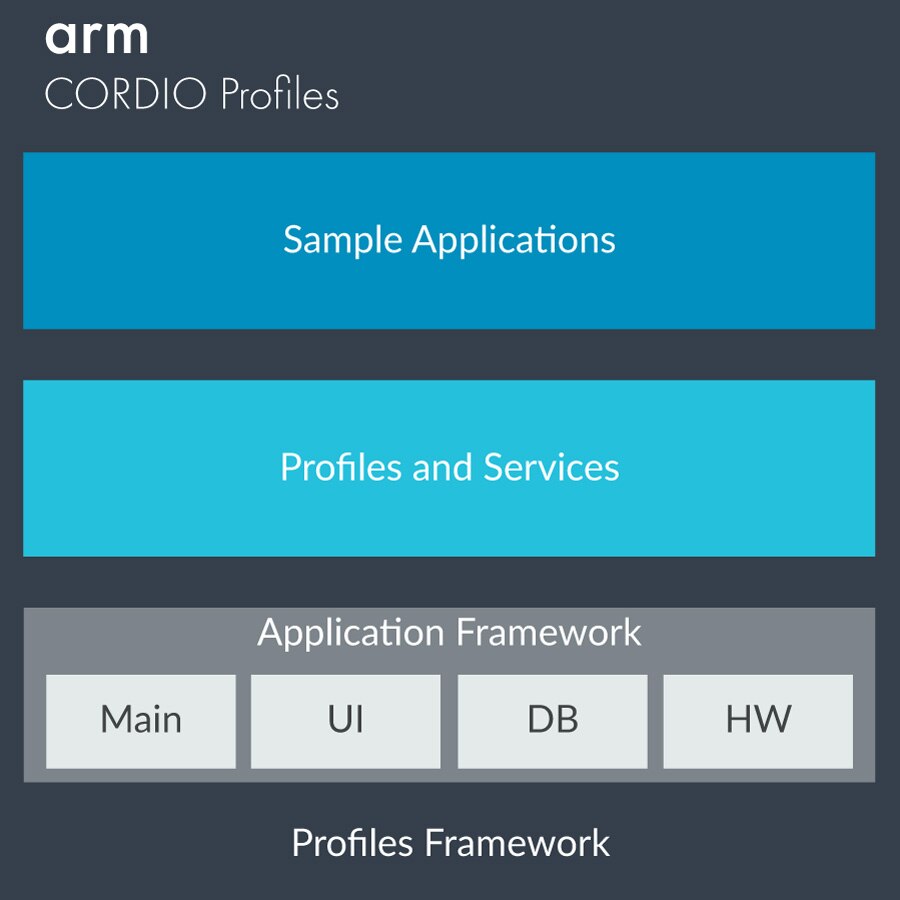

Cordio B50 Profiles


Cordio-B50 Profiles

Arm Cordio profiles provide a production-ready solution for creating interoperable Bluetooth 5 products. This unique approach to profiles offers sample applications built on a software framework that simplifies development and porting.

Cordio profiles are offered as an open-source option through Arm Mbed.

Read Product Sheet

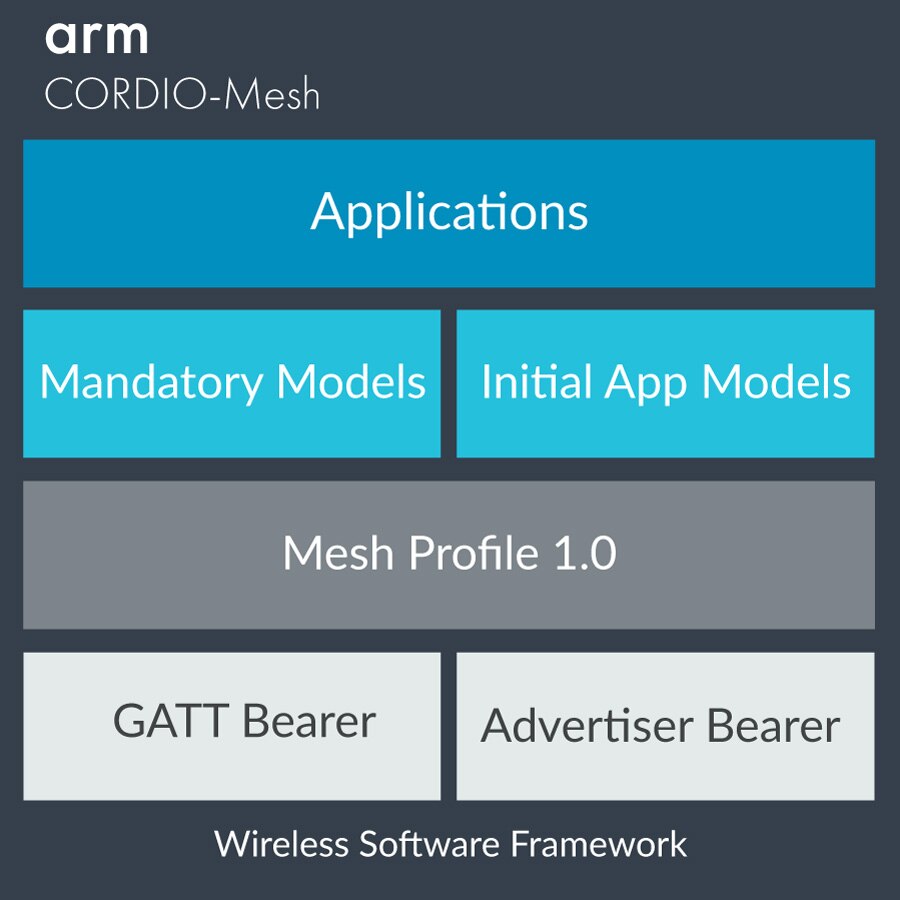

Cordio Mesh

Cordio-Mesh

Cordio-Mesh extends network range of Bluetooth low energy (BLE) by enabling many-to-many device communications. Mesh is optimized for creating large-scale device networks. It is ideally suited for building automation, sensor networks, and other IoT solutions.

Cordio Mesh will be offered as an open-source option through Arm Mbed.

Read Product Sheet
