Accelerate your time to market

The Arm AGI CPU delivers breakthrough performance and energy efficiency for servers in AI data centers. These reference designs help partners and customers evaluate performance, optimize workloads, and accelerate their journey to next-generation Arm-based infrastructure.

Arm AGI CPU 1OU Dual Node Reference Server

Available in Dual Node (1U2N) or Single Node (1U1N).

SKU

1U2N and 1U1N

Chassis

1U ORv3 Chassis, (W) 21.14 x (H) 1.76 x (D) 31.7 inch (= 537 x 44.7 x 805 mm)

Host Processor Module (HPM)

DC-MHS M-SDNO Class B 250mm x 305mm

CPU
  • 1 Arm AGI CPU SoC per node
  • Neoverse V3 136C SoC, TDP 300W
  • 96 Gen6 PCIe, CXL 3.0

Memory

(12) DDR5 DIMM slots, Micron MTC40F2046S1RC80BH1 64 GB 8000 MT/s (1DPC) /per node

Storage (Front)
  • (1) E1.S 15mm Data Drive Micron PCIe Gen 5.0, 7600 1.92TB
  • (1) E1.S 9.5mm Boot Drive Micron PCIe Gen 5.0, 7600 1.92TB /per node

Storage (Internal)

(1) E1.S 9.5mm Data Drive Micron PCIe Gen 5.0, 7600 1.92TB + (1) E1.S slot available for expansion /per node

PCIe expansion slots (Front plane)

1U2N - (1) PCIe x16 FHHL Card, (1) HHHL (1) OCP NIC 3.0 per node

PCIe expansion slots (Backplane)
  • (1) PCIe x16 FHHL Gen 6.0 expansion slot

I/O ports

(1) Micro USB Type B (1) Mini Display Port (1) 1Gbe Dedicated LAN Port (1) USB 3.0

TPM

TPM 2.0 on DC-SCM module

DC power

ORv3 48V Bus Bar

System fans
  • 1U2N - (10) 4056 Dual Rotor fans (19+1 redundancy)
  • 1U1N - (5) 4056 Dual Rotor fans (9+1 redundancy)

System management

OCP DC-SCM 2.1-like module with ASPEED BMC AST2600 chip

NIC

OCP NIC 3.0 support

Operating conditions
  • Operating temperature: 5°C to 40°C
  • Non-operating temperature: -40°C to 70°C
  • Operating relative humidity: 20% to 85% RH
  • Non-operating relative humidity: 10% to 95% RH

Rack support

21” ORv3 Rack air cooled

Power consumption
  • 1U2N - 1998 W
  • 1U1N - 999 W

Ordering part number
  • 1U2N - RS113021S-2
  • 1U1N - RS113021S-1
Arm Reference Server product briefTalk to an Arm expert

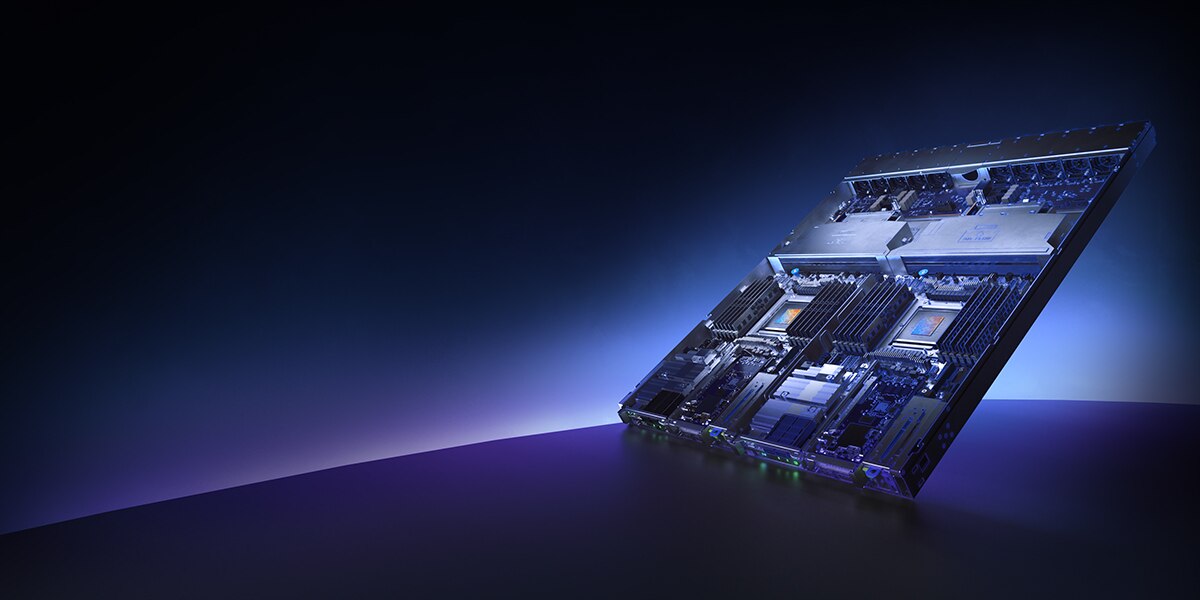

Unleashing rack-scale performance and efficiency for agentic AI datacenter
Unleashing rack-scale performance and efficiency for agentic AI data center: Introducing the Arm AGI CPU 1OU Dual Node Reference Server.
Read blog

Arm AGI CPU 2U2P Reference Server

SKU

2U2P

Mechanical

2U, 19” EIA

MB

Non-DCMHS (424.18mm x 368.3mm)

CPU

Arm AGI CPU 2P, up to TDP 325W

Memory

Up to 24x DDR5 8000 MT/s DIMM per 2S system

PCIe

Up to 2x x8 FHFL slots + 2x x8 FHHL slots + 2x x16 FHFL slots Gen6

OCP

2x SFF OCP 3.0 card x 16 Gen6

Storage
  • Up to 2 x M.2 SSD for boot
  • Up to 24 x U.2 SSD for data storage at x4 PCIe Gen5
  • Or 12xE3.s (16.8mm) SSD for data storage at x4 PCIe Gen6 

Management

DC-SCM 2.1, BMC Aspeed 2700, PROT AST1060

Thermal

6x6056 fans

PSU

2x CRPS PSU support
